詳細介紹：

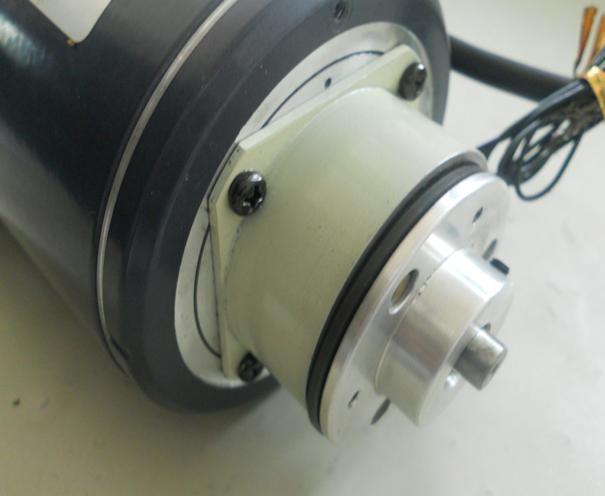

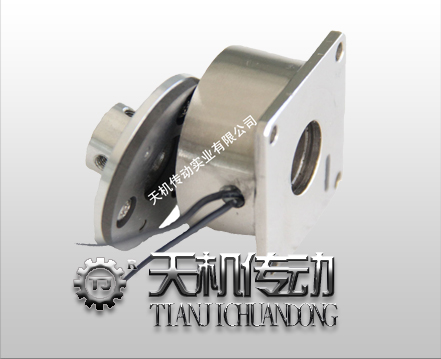

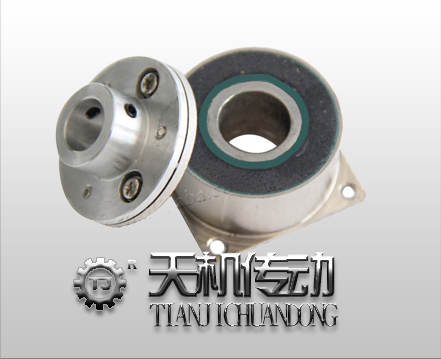

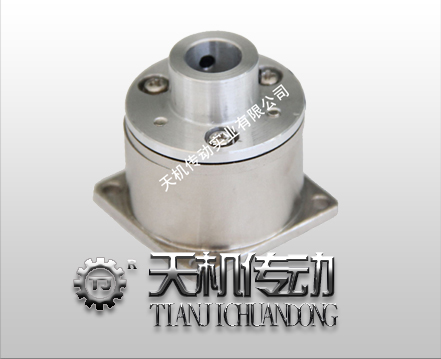

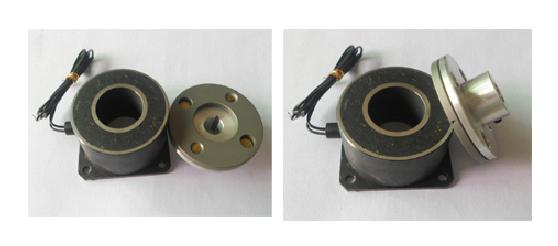

  東莞天機傳動(臺灣天機牌)微型電磁制動器亦是使用DC24V，其扭矩0.5Nm-5Nm稱之為微型扭矩。安裝法蘭可方形或者圓形但是4個安裝孔的尺寸不變（根據型號的大小變化）。微型(xing)電磁制動器定子通過法蘭安裝的型號，可以簡單地安裝到劈面/安裝板上。 微型電(dian)磁制動(dong)器由內置線圈的定子、填入填充材料的定子及電樞單元構成，定子通過安裝法蘭切實地固定到機械的支架等緊固的靜止部位。電樞單元由電、彈簧片及電樞輪轂組成，與旋轉子機對，并保持一定的間隙（0.2mm），正確進行組合，固定到被制動的軸（旋轉體）上。

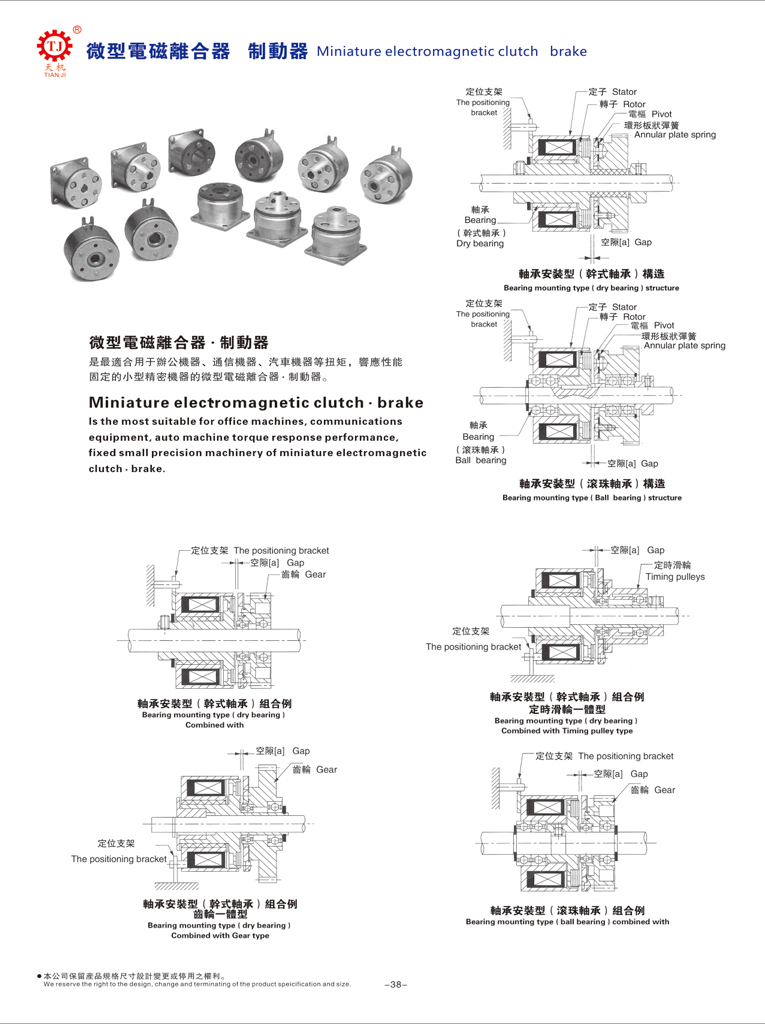

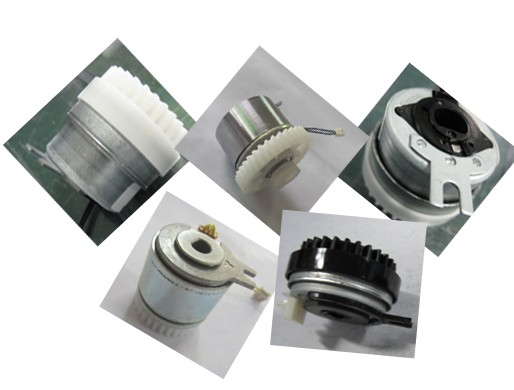

  該型微型電磁制動器（TJ-C-B）基本設計與微型電磁離合器（TJ-C-A）基本相同，是一種高性并且結構緊湊的微型制動器，其制動能強，最適合高精度定位，可以安裝在小型精密機械品上任何安裝位置，簡單且方便。微型電磁制動器具有安裝快捷、噪音低、制動平穩、耐用等優點，可與微電機配套使用，被廣泛應用于廣泛應用于門機驅動、電動輪椅、倉儲自動控制、自動門、醫療器械、步進電機等自動化機械傳動系統中，起快速停車、安全制動作用。
  微型(xing)電磁制動器重要特征(zheng)就是在電路通(tong)斷(duan)瞬間，尤其是斷(duan)開(kai)瞬間會(hui)產生強大的感應(ying)電動勢。這(zhe)種電動勢通(tong)常是正常工作(zuo)電壓的幾倍至(zhi)幾百倍。如此高的沖擊電壓對電磁(ci)制動器本身損(sun)害(hai)極大，對后續設備也有很大影響。
一個(ge)電(dian)(dian)(dian)(dian)(dian)感線(xian)(xian)(xian)圈(quan)(quan)，除具有(you)一定的(de)電(dian)(dian)(dian)(dian)(dian)感量L外，還(huan)有(you)導線(xian)(xian)(xian)電(dian)(dian)(dian)(dian)(dian)阻(zu)R、鐵心損耗(hao)(hao)以及線(xian)(xian)(xian)圈(quan)(quan)匝間(jian)和(he)(he)層(ceng)間(jian)的(de)電(dian)(dian)(dian)(dian)(dian)容等(deng)(deng)參數。實(shi)際的(de)電(dian)(dian)(dian)(dian)(dian)感線(xian)(xian)(xian)圈(quan)(quan)的(de)等(deng)(deng)效(xiao)電(dian)(dian)(dian)(dian)(dian)路用(yong)R與L串聯，用(yong)R上的(de)損耗(hao)(hao)表(biao)示(shi)實(shi)際電(dian)(dian)(dian)(dian)(dian)感線(xian)(xian)(xian)圈(quan)(quan)的(de)一切損耗(hao)(hao)；用(yong)一個(ge)等(deng)(deng)效(xiao)電(dian)(dian)(dian)(dian)(dian)容C并聯在電(dian)(dian)(dian)(dian)(dian)感線(xian)(xian)(xian)圈(quan)(quan)兩端(duan)，表(biao)示(shi)線(xian)(xian)(xian)圈(quan)(quan)匝間(jian)和(he)(he)層(ceng)間(jian)電(dian)(dian)(dian)(dian)(dian)容及其他分布電(dian)(dian)(dian)(dian)(dian)容，這樣組(zu)成實(shi)際電(dian)(dian)(dian)(dian)(dian)感線(xian)(xian)(xian)圈(quan)(quan)的(de)等(deng)(deng)效(xiao)電(dian)(dian)(dian)(dian)(dian)路。
